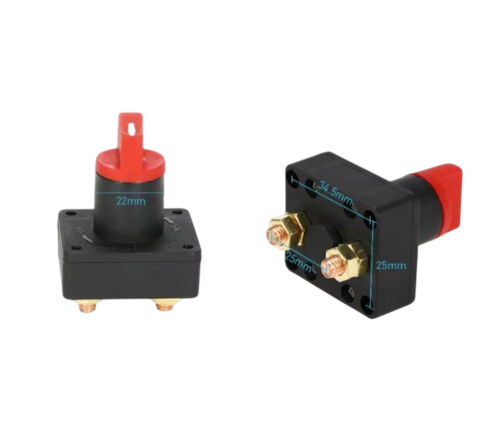

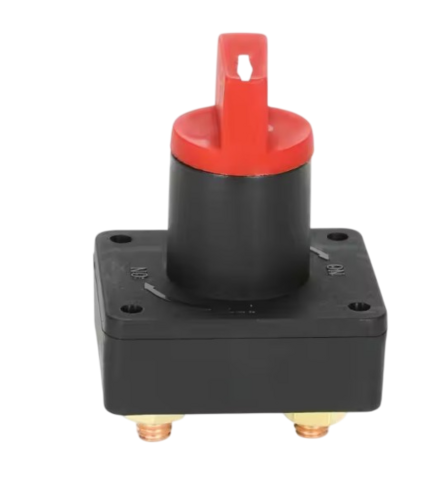

Mini Battery Isolator Switch 9-48VDC 50A Continuous

Compact mini battery isolator / disconnect switch for 9–48V DC systems. Designed for panel mounting in cars, trucks, boats, campervans, and other vehicles. Cuts battery power completely to prevent drain and protect circuits. Waterproof construction suitable for exposed or harsh environments.

Part No: 51-MINIISOLATOR | Rating: 50A continuous / 100A peak | Voltage: 9–48V DC

Price:

NZ$ 24.95 excluding GST

NZ$ 28.69 including GST

or four payments of $7.17 with
Learn More

Product Code:

51-MINIISOLATOR

Information
Features
Specifications

Battery isolator switches are an essential safety and security feature in any vehicle electrical system. By completely disconnecting the battery from the circuit, they prevent parasitic drain when the vehicle is stored, isolate faults, and act as an emergency cut-off. This mini switch is ideal where space is limited but a reliable isolation solution is required, including campervans, boats, trucks, and classic cars.

Compact mini form factor – ideal for space-constrained installations
Wide voltage range: 9–48V DC – suits 12V, 24V, and 48V systems
50A continuous current rating with 100A peak capability
Waterproof construction – suitable for exposed or harsh environments
Suitable for cars, trucks, boats, campervans, and other vehicles
Simple on/off operation to completely disconnect battery power

Specification	Value
Part Number	51-MINIISOLATOR
Voltage Rating	9–48V DC
Continuous Current	50A
Peak Current	100A
Weatherproof	Yes
Mount Type	Panel mount
