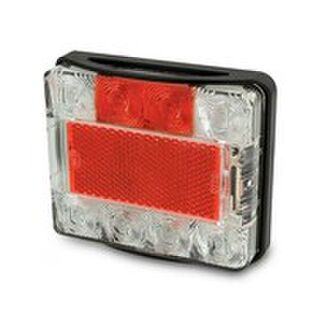

LED COMB TRAILER LAMP 9MTR CABLE 2SD 980.720-037

Name: LED COMB TRAILER LAMP 9MTR CABLE 2SD 980.720-037
Brand: YOUNGS AUTOMOTIVE LTD
SKU: HL 2394-9M

HELLA LED Combination trailer lights offer fully sealed lamps, complete wiring run ingress protection, and a ‘click-in’ mounting base make for the ultimate easy install trailer lighting solution.

Price:

NZ$ 122.56 excluding GST

NZ$ 140.94 including GST

Product Code:

HL 2394-9M

Information
Specifications

HELLA LED Combination trailer lights offer fully sealed lamps, complete wiring run ingress protection, and a ‘click-in’ mounting base make for the ultimate easy install trailer lighting solution.

Suitable for trailers, Utes, and small trucks, the combination trailer light provides convenient installation, with a base featuring flexible and easy mounting, which the light body simply clicks into.

Built with impact and shock resistant Grilamid® lenses, UV and corrosion resistant materials, and designed to withstand high-pressure washing and temporary immersion, these lights deliver long service life and true “Fit and Forget” reliability.

9m wiring length, the lights are ADR compliant, and road legal in New Zealand.

Optics

Optic appears clear until illuminated

Mounting

Surface mount with choice of mounting holes. Lamp clips into mounting base.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

Stop:	2W
Rear position:	1W
Rear direction indicator:	2W

Protection

Reverse polarity and transient spike circuit protection.

IP6K7 (Protection against dust and temporary water immersion)
IP6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

2VA 980 720-071	Supplied with 0.5m of sheathed multi-core cable with open ends.
2VA 980 720-021	Supplied with 6m of sheathed multi-core cable with open ends.
2VA 980 720-037	Supplied with 9m of sheathed multi-core cable with open ends.
