IGNITION SWITCH 12V 30A

IGNITION SWITCH 12V 30A

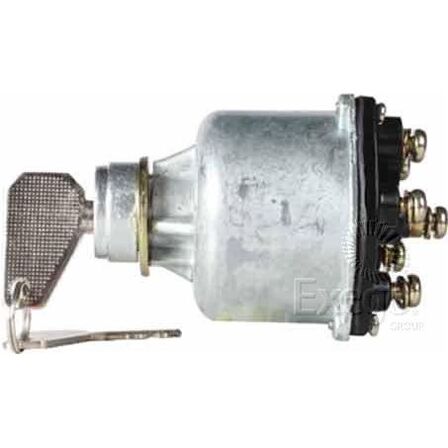

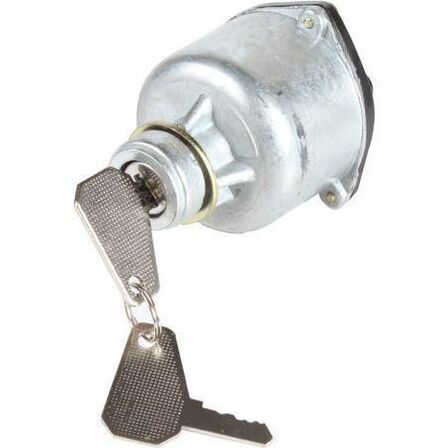

OEX Ignition Switch Glow - Off - Acc/Ign - Start (Contacts Rated 30A @ 12V)
Price:
NZ$ 82.35 excluding GST

NZ$ 94.70 including GST
IN ACX3563
Part No. ACX3563
Type IGNITION SWITCH
Brand OEX
Unit of Measure EACH
Description OEX Ignition Switch Glow - Off - Acc/Ign - Start (Contacts Rated 30A @ 12V)
Warranty One Year
Number of Terminals 6
Power Rating [Amp] 30
Switch Action Glow - Off - Acc/Ign - Start
Voltage 12
Lamp Colour/s Not Applicable
Mount Diameter 19mm
Mount Length 3mm
Number of Poles 2
Number of Positions 4
Switch Type Ignition
Switch Illumination Non Illuminated

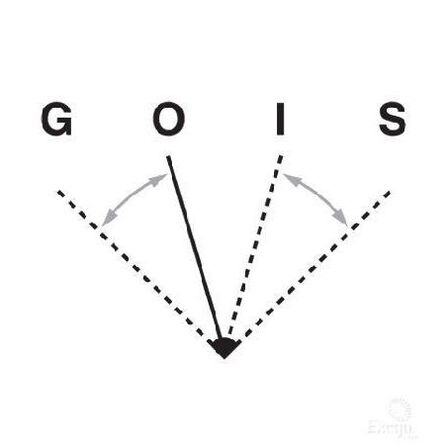

• 4 Position, On (Glow Plug) - Off - Ign-Start/Glow Plug.
• Supplied with 2 keys.

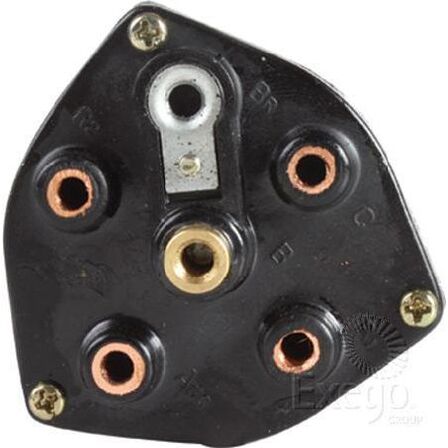

• 6 Screw terminals.
• Key removable in Off position only.
• Mounting stem: 19.00mm diameter.
• Suits: Isuzu, Nissan truck and bus applications.
• UD3, UD4, UD5, UD6 2 cycle engine.
