HELLA DRIVING LIGHT LED CUBE 3.2" SPOT BLK MAGIC

HELLA DRIVING LIGHT LED CUBE 3.2

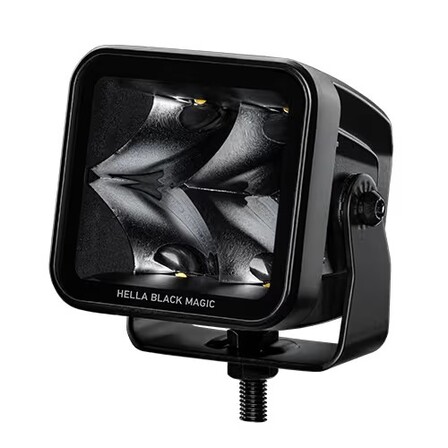

Hella Black Magic LED Cube Headlamp 3.2” (Spotlight)
Price:
NZ$ 169.20 excluding GST

NZ$ 194.58 including GST
HL 1FA358176861
Purchase Qty:


Available in two sizes 2.7˝ and 3.2”, the Black Magic Cubes have a distinguished dark appearance (including black brackets) and dirt shedding edgeless design making them stand out from the crowd. Installation is made easy with a 500mm cable for upright or pendant mounting. Backed by a 2 year warranty.

Note: These LED lamps have not been approved to ECE R112 regulations (E Mark) for light output, and therefore are recommended for Motorsport or off-road use only, and must be switched independently of headlamps.

• Full Blackout Appearance
• Ideal for Off Road Driving
• Dust and Waterproof
• Floodlight Beam suitable for 4WDs

Accessory Option: HELLA Amber Lens cover for Black Magic 3.2" Cubes.
Snap on Amber cover for 3.2" Black Magic Flood and Spot lights to help cut through foggy conditions.
(Compatible with Upright/Pendant mount variants only).

Mounting

Upright/pendant

Voltage

Multi-voltage suitable for 12 or 24 volt systems

Max Power Consumption

2.7”: 20W
3.2”: 40W

Max Light Output

2.7”: 1400 lumen
3.2”: 3000 lumen

Colour Temperature

5700K

Cable Length

500mm cable with integrated DT Socket

Protection

Reverse polarity protection.
IP 68 (Protection against dust and water immersion)
IP 69K (Protection against dust and high-pressure/steam jet cleaning)

Weight

2.7”: 350g
3.2”: 358g

Housing

Aluminium, black stainless steel bracket

Compliance

CE, ECE R10

CE

Accessory Options

8XS 358 176-451 HELLA Amber Cover for 3.2" Black Magic Cubes

The light distribution charts show the ranges of two lights.
