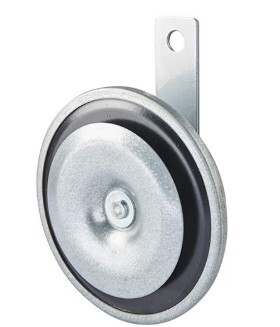

Disc Horn Low Tone - 12 Volt

Disc Horn Low Tone - 12 Volt
M26 Horn 12V, 335 Hz, Low Tone (Teflon pellet)
Price:
NZ$ 37.71 excluding GST

NZ$ 43.37 including GST
HL 6001
Purchase Qty:


M26 Series Disc horns are rated at 115dB, 3 times louder as the previous models, offering additional awareness and safety with a strong and focussed sound in either Low or High tone options.
Models available with optional Teflon pellet humidity protection.

  • 3x LOUDER than previous models
  • Penetrating, long-range sound for extra safety
  • High Quality, Rich Tone
  • Enhanced quality and durability

Mounting

Single bolt mounting

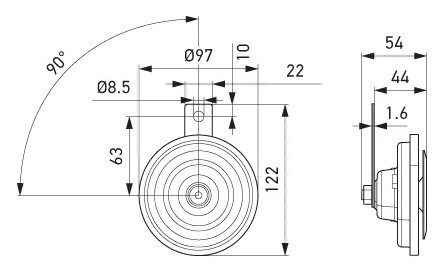

Diameter

97mm

Voltage

Single Voltage: 12V DC (9.5-15V) or 24V DC (21-29V)

Frequency

335 Hz (low tone) / 400 Hz (high tone)

Sound level

115 dB(A) @ 2m

Power Consumption

12V horns: 66W / 24V horns: 84W

Current Consumption

12V horns: 5.5A / 24V horns: 3.5A

Operating Temperature

-40°C to +60°C

Protection
IPX9K 3AL 002 952-811 / 3AL 002 952-821 / 3AL 002 952-861
IPX7 3AL 002 952-871

Lifetime

50,000 cycles

Compliance

ECE‑R28, E1 0020011
