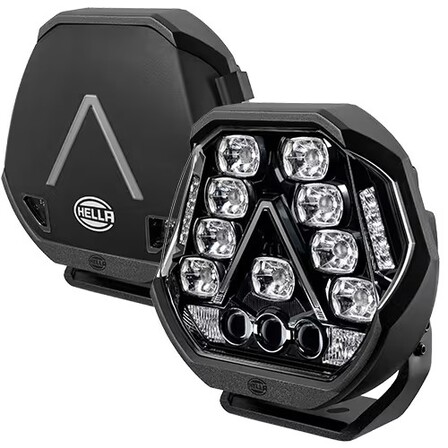

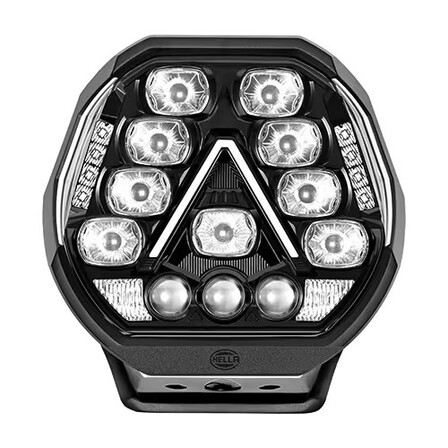

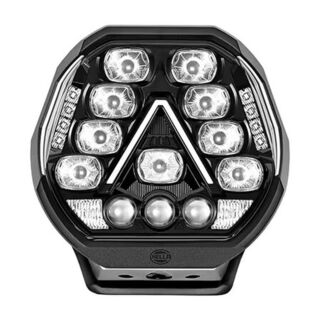

DRIVING LIGHT KIT HELLA ANTARES 9IN HP200 10-30V

DRIVING LIGHT KIT HELLA ANTARES 9IN HP200 10-30V
ANTARES 9 Inch Driving Light Kit
RRP:
NZ$ 1,236.60
Savings:
NZ$ 561.60 (a 45% discount)
Price:
NZ$ 675.00 excluding GST

NZ$ 776.25 including GST
HL 1FO358228871
Out Of Stock - Ring (03)-548 9014 And We Can Backorder More

Mounting

Upright

Voltage

10-30V DC (suitable for 12 or 24 volt DC applications)*
*Relay & switch for 24V operation to be supplied seperately

Max Power Consumption

High Output Mode: 215W per lamp
Low Output Mode: 120W per lamp

Max Light Output

High Output Mode: 8500 lumen per lamp

Beam Distance (Metres)

High Output Mode: 800m+ @ 1 Lux (pair)
Low Output Mode: 650m+ @ 1 Lux (pair)

Beam Width (Metres)

High Output Mode: 80m @ 1 Lux (pair)
Low Output Mode: 60m @ 1 Lux (pair)

Colour Temperature

5700K

Cable Length

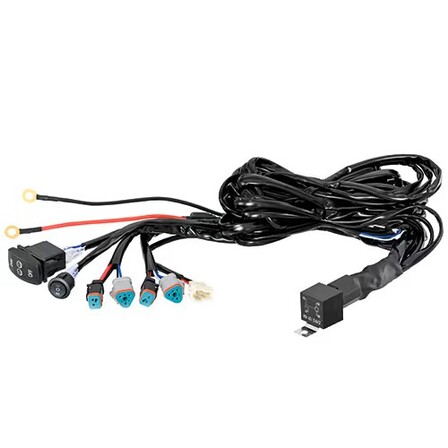

Supplied with 500mm wiring harness

Protection
Reverse polarity protection.
IP67 (Protection against dust and temporary water immersion)
IP69K (Protection against dust and high-pressure/steam jet cleaning)

Weight

Per Lamp: 2200g

Housing

Diecast Aluminium housing and bracket

Compliance
CE, ECE R10 (CISPR25 CLASS 3) R148 (R7), R149 (R112), R87. REF. 30.
ADR 49/00, 46/00 (low mode), 76/00

CE
