COUPLING O/RIDE 2500KG DUOFIT 3/4 CYL STD SPRING

COUPLING O/RIDE 2500KG DUOFIT 3/4 CYL STD SPRING

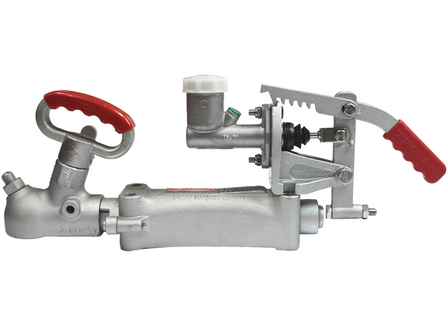

Duofit Override Hydraulic Coupling, Spring Dampened - 2500kg
Price:
NZ$ 429.28 excluding GST

NZ$ 493.67 including GST
TR 201660
Purchase Qty:


The Trojan duofit spring operated couplings are the only couplings that comply fully with the New Zealand standard for towball couplings NZS5232:1993 in all respects. They are designed to suit 50mm and 1’’ 7/8 tow balls and is rated to maximum GVM of 2500kg, are made from high grade cast iron and coated significantly with corrosion protection for long term maintenance free use. A large range of spare parts is also available.

One of Nz’s most common bolt mounting patterns. Mount pattern pictured below is measured across bolt centers, Rated to 2500kg max. Mounting by way of four 12mm high tensile bolts is recommended. Complies with Australian Standard AS4177.3 (1994).

Bolt SizeG 8.8G 10.9
M10 45ft/lb 60Nm 60ft/lb 80Nm
M12 75ft/lb 100Nm 90ft/lb 120Nm
