BATTERY SWITCH ON/OFF PANEL MOUNT 275A CONT

BATTERY SWITCH ON/OFF PANEL MOUNT 275A CONT
Battery Master Switch Panel Mount BEP
Price:
NZ$ 75.25 excluding GST

NZ$ 86.54 including GST
BM 701-PM

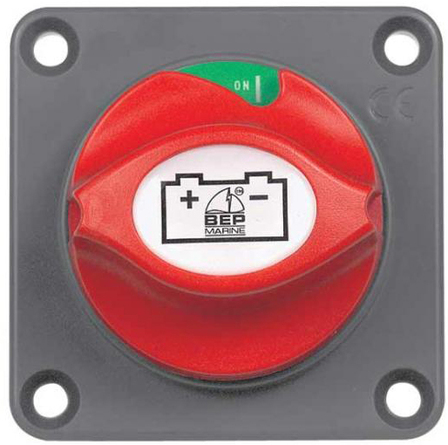

BEP Battery Master Switch - Panel Mount

The 35-701PM Battery Master Switch is designed specifically for panel mount applications.

The 35-701PM also features a control knob which cannot be removed whilst in the ON or OFF
position, however can be removed by switching to an anti-clockwise 45 position.
The control knob also features an interchangable labelling system allowing a full range of
applications.

Features
Group Single Pole
Type Handle - Removable
Feature Non-Lockable
Intermittent 1250A - 48V
Continuous 275A - 48V
  • Continuous Duty Rating: 275 Amps
  • Intermittent Duty Rating: 455 Amps
  • Maximum Intermittent Duty Rating: 1250 Amps for 10 seconds
  • Voltage rating: 48 Volts DC
  • Operation: On/Off
  • Termination stud size: 2 x 10mm
  • Dimensions: 69mm x 69mm x 75mm high
