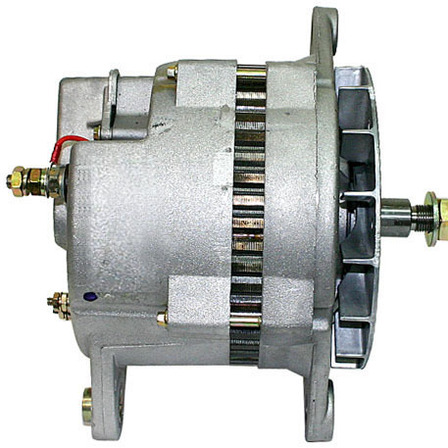

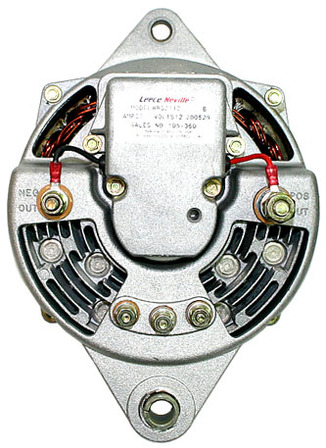

ALT 12V 160A LEECE NEVILLE (INSULATED RETURN)

Specifications

(Prestolite - 8LHA2070VE - 110-555JHO

Adjusting Hole Diameter: 1/2-18UNC
Pulley V Distance From Bracket: n/a
Pulley Diameter (mm): n/a
Shaft Size (mm) : 22.2
Stator Diameter (mm): 167

SUITS: American Truck Applications - Common Universal (Mack, Kenworth, Freightliner etc)

NOTE: Self exciting design, activated & shutdown with engine. J-180

INSULATED GROUND - SUITABLE FOR MARINE USE

NOTE: 64-025 (110-555JHO) has the following new features
- High temp HTML wire 110 Deg C rated stator.
- High temp Krytox grease in Bearings.
- Solid piece rectifier with welded Diode connections.
- High vortex fan with curved blades - up to 30% more airflow
- Insulated Ground

NOTE: Voltage Set Point: 14.4V (Non adjustable)

NOTE: Output approximate only at 25oc (cold). Hot operation (85oc) output is reduced by approx 15%
