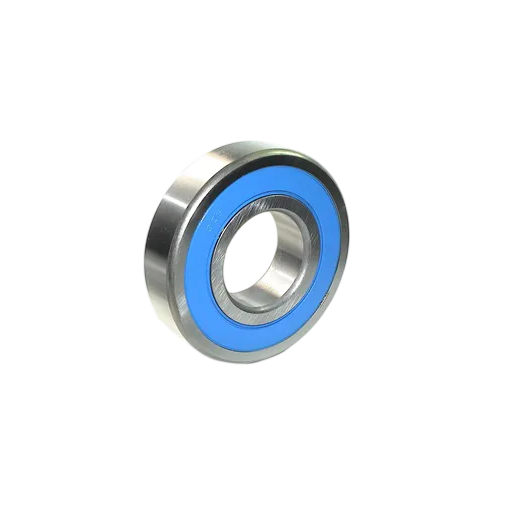

6308-2RS Bearing (40 x 90 x 23mm)

Double-sealed (2RS) deep groove ball bearing 40 x 90 x 23mm — rubber seals on both sides retain grease and exclude contaminants. Used in alternators, starter motors, electric motors, and general machinery.

Part No: 6308-2RS | Dimensions: 40 x 90 x 23mm | Type: Deep groove ball bearing | Sealing: 2RS (rubber sealed both sides)

Price:

NZ$ 36.47 excluding GST

NZ$ 41.94 including GST

or four payments of $10.49 with
Learn More

Product Code:

6308-2RS

Information
Features
Specifications

The 6308-2RS is a double-sealed deep groove ball bearing (40 x 90 x 23mm). The 2RS designation indicates rubber seals on both sides, which retain the factory grease charge and exclude moisture and contaminants, making these bearings suitable for general purpose applications without additional sealing.

Commonly used in automotive alternators, starter motors, electric motors, pumps, and general industrial machinery. Replace when bearing noise, roughness, or play is detected. Always match the bearing number exactly when ordering replacements.

Deep groove ball bearing — 40 x 90 x 23mm
2RS — rubber sealed both sides
Pre-greased for life
Suitable for alternators, starter motors, electric motors, and pumps
Standard ISO bearing number for easy cross-referencing

Specification	Value
Bearing Number	6308-2RS
Bore	40mm
Outer Diameter	90mm
Width	23mm
Dimensions	40 x 90 x 23mm
Type	Deep groove ball bearing
Sealing	2RS (rubber sealed, both sides)
Lubrication	Pre-greased (sealed for life)
