CABLE MARINE TWIN SHEATED WHITE 1.84MM2

CABLE MARINE TWIN SHEATED WHITE 1.84MM2

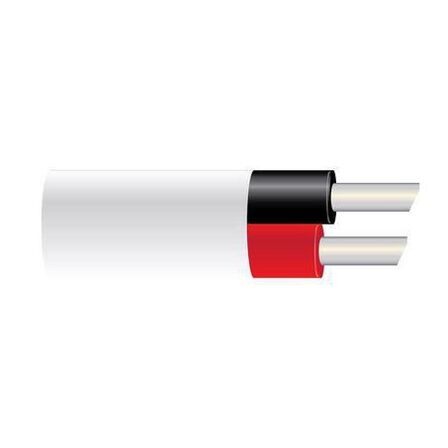

OEX 4mm Twin Core Tinned Marine Cable, Red/Black With White Sheath -
(NZ Ref. 153M)
Price:
NZ$ 5.34 excluding GST

NZ$ 6.14 including GST
Per Metre
IN ACX0966-1
Features • OEX 4mm Twin Core Marine Cable
• Colour: Red/Black with White Sheath
• Conductor: Tinned annealed copper
• Suitable for voltages up to 120V
• Amp rating: 15A at 30°C
• Temp Rating :V90 (90°C)
• Oxygen Free High Conductivity Copper
• UV Stabilised and RoHS compliant
• All Australian premium quality copper
• 100% Australian owned and made
Part No. ACX0966
Type ELECTRICAL CABLE
Brand OEX
Description OEX 4mm Twin Core Tinned Marine Cable, Red/Black With White Sheath - (NZ Ref. 153M)
Warranty One Year
Conductor Strand Diameter .3mm
Number of Conductor Strands 26
Trace Colour No Trace
Conductor Cross Section 1.84mm2
Note Tinned Annealed Oxygen Free Copper, V90HT rating means, Can be exposed to 105 degrees for a maximum 500 hours per year.
Cable Size 4mm
Cable Type Tinned
Gauge 15
Environmental UV Stabilized
Sheath Colour White
Cable Colour Red/Black
Temp Rating V90HT (105C)
Voltage Rating Up to 110V
Conductor Material Tinned Annealed Copper
Compliance AS/NZ 3191 & RoHS
Insulation Type AS/NZ 3191 & RoHS
