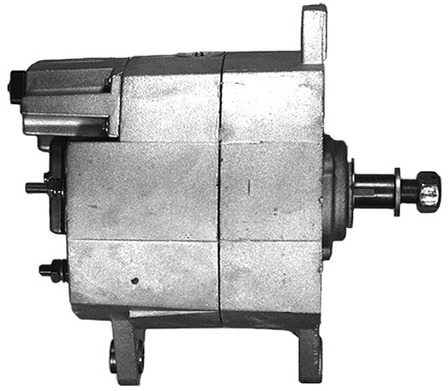

ALTERNATOR 24V 175A L/HANDLER

Specifications

GENUINE LEECE NEVILLE / PRESTOLITE
(Prestolite - 8SC3009ZA - 110-258)

Adjusting Hole Diameter: 1/2-18UNC
Pulley V Distance From Bracket: n/a
Pulley Diameter (mm): n/a
Shaft Size (mm) : 22.2
Stator Diameter (mm): 175

SUITS: Heavy Duty Marine & Commercial Applications with High Loads & Medium-High RPM Ranges

NOTE: This alternator should be duty cycled to prevent overheating. They are NOT designed to
deliver more than 140 Amps continious when hot. Extra air ventilation is required for confined
engine room applications. Warranty is VOID on overheated units with burnt out stators etc!!!

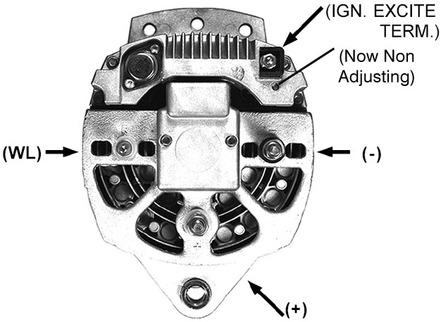

NOTE: For Tachometer connection the Regulator can be removed for access to 3 AC Stator
studs. Wiring can be routed through the regulator housing.

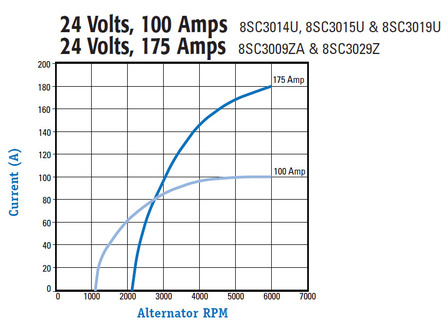

NOTE: Output approx only at 25oc (cold). Hot operation (85oc) output is reduced by approx 15%

NOTE:
Operating Voltage: 28V
Rotor Current Draw - 3.5-4 Amps
Ignition Exciting
INSULATED GROUND
